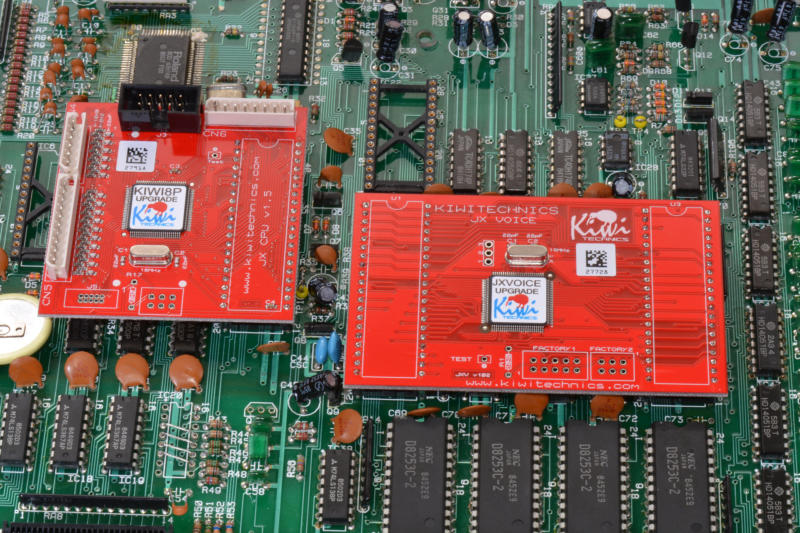

The Kiwi-8P Upgrade features:- 512 Tones can be stored and edited. It is also possible to temporarily edit any Tone Tones are stored in Flash memory so no battery is required. MidiCC & Sysex support for all parameters and Midi Sysex support for Tone Dump & Load PG-800 Support for Control of Parameters Patch Editor support Key Assign Modes are Poly Single, Poly Dual, Poly Triple, Unison & Solo Each Key Assign mode can have Rotate/Reassign, Staccato/Legato, Steal/No Steal with five steal modes (Highest, Lowest, Oldest, Newest, Quietest) Portamento in all modes DCO Key Assign Detune available in all key modes except Solo. In addition there is a 'Analog Feel' parameter that add an adjustable small random frequency to each note. Detune is best used with Poly Dual, Poly Triple or Unison keying modes for greatest effect Three independent envelope generators. These are traditional ADSR type and are modeled on the Original JX-8P. Each ENV Mod can select from ENV 1 - 3 and has an Inverted or Normal modes. These are faster than the traditional JX-8P envelopes Three independent Low Frequency Oscillators with 6 waveforms each. Each LFO Mod can select from LFO 1-3. LFOs can be plus and minus base note or plus base note only. Aftertouch scaling option to help with the failing 8P aftertouch strip. Key transpose allows transposition to any key with a range of plus 2 or minus 1 octaves. Sequencer key can be shifted while playing Internal Master Clock with the range 5-299 BPM. The master clock can be sourced from midi or internal. Full Matrix mod system that can channel any mod source to any destination. The matrix mod control parameter can itself be modified from various sources making the matrix very powerful A quality Front Panel Overlay is provided with the Kiwi-8P upgrade. This fixes the common 8P problem of broken switch membranes. CHORD MODE Any chord with up to 6 notes can be set and played from any key ARPEGGIATOR The Arpeggiator is clocked from the Master Clock and can be independently divided to Half Note, Quarter Note, 1/8 Note, 1/8 Note Half Swing, 1/8 Note Full Swing, 1/8 Note Triplets, 1/16 Note, 1/16 Note Half Swing, 1/16 Note Full Swing, 1/16 Note Triplets, 1/32 Note, 1/32 Note Triplets, 1/64 Note. Arp modes are Up, Down, Up and Down, Random, As Played, 1, 2, 3 or 4 octaves Arp can be Started, Stopped & Continued using Midi Commands Appeggiator will Output Midi Data SEQUENCER 8 separate 124 Max step Polyphonic sequences can be created and stored Sequences can be edited The Sequencer is clocked from the Master Clock and can be independently divided to Half Note, Quarter Note, 1/8 Note, 1/8 Note Half Swing, 1/8 Note Full Swing, 1/8 Note Triplets, 1/16 Note, 1/16 Note Half Swing, 1/16 Note Full Swing, 1/16 Note Triplets, 1/32 Note, 1/32 Note Triplets, 1/64 Note. Sequencer will Output Midi Data Sequencer has play options that include One shot, Keydown play, Auto Transpose, Auto Complete  Here is a demo made by Joakim Here is a demo made by Darren Here is a demo made by Liv at the Invincible Music Studio

©Roland Names & Logos are owned by Roland Kiwitechnics Kiwi-8P Upgrade has not been authorised or endorsed by Roland

Menu Map    User Manual v140

Roland JX-8P Service Manual

Latest Firmware K8P_CPU170B140e_VB150B120_Build1.zip

Please request files using the Get_In_Touch page
