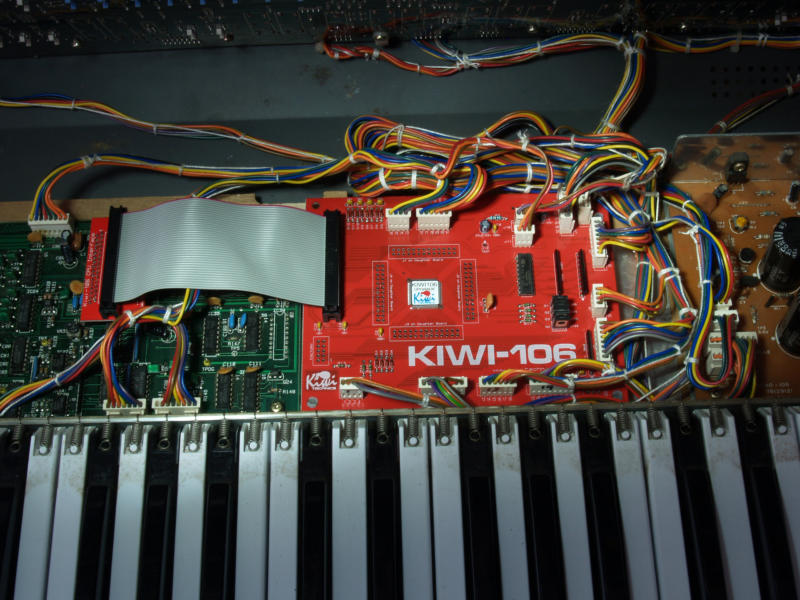

The Kiwi106 Upgrade features:- • 512 Patches can be stored and edited. 128 Factory Patches are preloaded. • Patches are stored in Flash memory so no battery is required. • Bend Controls (DCO, VCF Bend, LFO Mod Level & Portamento) are stored with the Patch • MidiCC & Sysex support for all parameters and Midi Sysex support for Patch Dump & Load • NRPN & Sysex variable parameter control supports 12 bit for 4096 parameter steps • Patch Editor Control of Parameters (PE firmware v5.2 or higher). • Key Assign Modes are Poly I&II, Unison Legato & Staccato, Mono Legato & Staccato • Pedal & Front Panel Button Note Hold modes • Portamento in all modes • DCO Key Assign Detune available in all key modes except mono • Internal Master Clock that can be used to clock the Arp, Sequence and/or Pattern and can optionally generate a midi clock. Master Clock options are Internal, External or Midi. • Two independent envelope generators. Each ENV Mod can select from ENV 1 or 2 and be Inverted or Normal • Two independent Low Frequency Oscillators with 6 waveforms each. LFO2 random2 wave can be clocked from the Internal clock. Each LFO Mod can select from LFO 1 or 2. LFOs can be plus and minus base note or plus base note only. Each LFO Mod can be inverted. • Aftertouch, Modulation Level and Dynamics via midi. Dynamics can optionally control the VCA and/or VCF. The Dynamics have been modeled on the Juno-2 with both the VCF & VCA mod turned on by default for a more natural and expressive play. This brings new life to every patch in the Kiwi-106. • Arp/Seq/Pattern Clocks can optionally display on the KeyT LED and LFO 1 and LFO 2 clocks can optionally display on the Group lights • Key transpose allows transposition to any key with a range of plus 2 or minus 1 octaves. Sequencer key can be shifted while playing • Can be fitted to HS-60, Juno-106S or Juno-106 models. This needs a keyboard mount to be removed but this will not effect the synth. • Comes with metal Label CHORD MODE • Any chord with up to 6 notes can be set and played from any key ARPEGGIATOR • The Arpeggiator can be independently divided from the Master Clock. Clock divide options are Half Note, Quarter Note, 1/8 Note, 1/8 Note Half Swing, 1/8 Note Full Swing, 1/8 Note Triplets, 1/16 Note, 1/16 Note Half Swing, 1/16 Note Full Swing, 1/16 Note Triplets, 1/32 Note, 1/32 Note Triplets, 1/64 Note. • Arp modes are Up, Down, Up and Down, Random, As Played, 1 to 3 octaves • Arp can be Started, Stopped & Continued using Midi Commands • Arp state is saved with a Patch. This allows the Arp to play automatically when a Patch is loaded • Appeggiator will Output Midi Data SEQUENCER • 8 separate 124 Max step Polyphonic sequences can be created and stored • Sequences can be edited • Sequencer can be Started, Stopped & Continued using Midi Commands • The Sequencer can be independently divided from the Master Clock. Clock options are Half Note, Quarter Note, 1/8 Note, 1/8 Note Half Swing, 1/8 Note Full Swing, 1/8 Note Triplets, 1/16 Note, 1/16 Note Half Swing, 1/16 Note Full Swing, 1/16 Note Triplets, 1/32 Note, 1/32 Note Triplets, 1/64 Note. • Sequence state is saved with a Patch. This allows the Sequencer to load and play automatically when a Patch is loaded • Sequencer will Output Midi Data and can have an independent midi channel • Sequencer has play options that include One shot, Keydown play, Auto Transpose, Auto Complete PATTERN GENERATOR • 8 Pattern Generator patterns can be saved and edited. The pattern can be any length between 2 and 16 steps • The Pattern Generator can use the Arp or Seq clocks. • Pattern Generator can be Started, Stopped & Continued using Midi Commands • Pattern Effect can be faded from no effect to full effect. • Pattern state is saved with a Patch. This allows the Pattern Generator to load and play automatically when a Patch is loaded REVIEW • An independent review from Sonicstate can be found here .

©Roland Names & Logos are owned by Roland Kiwitechnics Kiwi106 Upgrade has not been authorised or endorsed by Roland Packrat picture © Dave C. Lovelace

Menu Map    User Manual v204    Front Panel

Roland Juno-106 Service Manual

It's   been   a   long   two   years   to   keep   things   quiet,   but   it's   time   for   Kiwitechnics   and   Psicraft   Designs   to   let   everyone   in   on   the   big   big   secret:   Kiwi-106 is now shipping! Guided   by   such   gear   luminaries   as   Dave   Lovelace   (the   creator/author   of   Keyboard   magazine's   Packrat   comic)   and   the   YouTube   channel   Juno-106 expert   Syntegrator,   Kiwitechnics   and   Psicraft   have   brought   this   beloved   synth   classic   out   of   the   80s   and   put   it   where   it   belongs:   The   heart   of your 21st century studio. An   expanded   synthesis   architecture   with   dual   envelopes   and   multi-waveform   LFOs      is   only   the   tip   of   the   creative   possibilities   that   any   Juno-106 can   now   possess.   Comprehensive   routing   of   controls,   high   resolution   parameters,   and   eight   groups   of   64   patches   expand   the   Juno-106's synthesis   capability   many   times   over,   but   we're   not   done   yet.   Add   in   a   six   voice   polyphonic   124   step   sequencer   and   a   pattern   generator   to   the mix   and   Juno-106   becomes   a   new   class   of   instrument.   Now   design   and   implement   a   totally   modern   MIDI   implementation   suited   for   modern stage   and   studios   and   provide   a   free   Vyzex   professional   instrument   Windows   editor/librarian   along   with   the   price   of   admission   and   what   do   you have? Modern Brains and Vintage Brawn, baby. The Kiwi-106!

Vyzex Windows Editor

Latest Firmware K106_P206_B203_Build2.zip

Vyzex Mac Editor* * This editor has a known error and is not supported

This link  will take you to replacement Key Contacts made by LA Synth.

Please request files using the Get_In_Touch page
